Installation of your Pedalbox

ATTENTION: PLEASE CAREFULLY READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE ATTEMPTING INSTALLATION.

The Pedalbox has been carefully designed and rigorously tested. By following the instructions and advice in this manual you will avoid incorrect fitment and ensure maximum enjoyment without running the risk of voiding the guarantee.

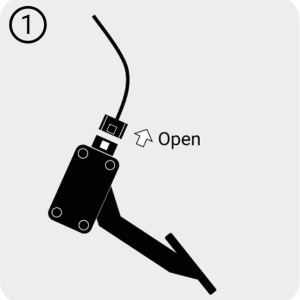

Step 1: Turn off the ignition, place the key outside the vehicle, and wait approximately 10 minutes for all systems to shut down completely. Then disconnect the accelerator pedal connector.

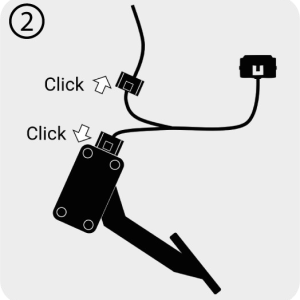

Step 2: Connect the supplied cable to the vehicle’s original connector.

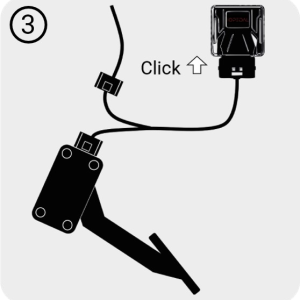

Step 3: Attach the module to the wiring harness. Ensure that the installation does not interfere with the vehicle’s pedals or steering column.

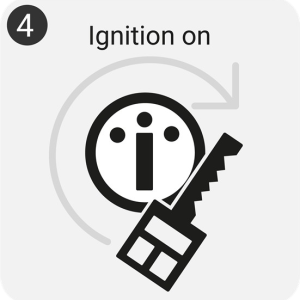

Step 4: Turn on the ignition. The PEDAL CONTROL will automatically activate the auto-ranging function and wait for input signals from the accelerator pedal.

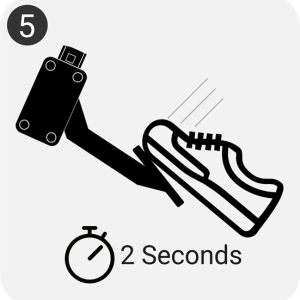

Step 5: Slowly press the accelerator pedal to full throttle and hold it for about 2 seconds. Repeat this process 2–3 times. The system will then be fully con gured and perfectly adapted to the vehicle.

For further details on installing and operating the PEDAL CONTROL, refer to the user manual.

Download our app from the App Store
Download our app from Google Play Store
Use caution to never install, or remove the Pedalbox with the key on, or the ignition powered on. Before installing, switch off the ignition and wait 10 minutes for the vehicles electrical system to shut down completely. During this time, don’t open, or close doors, this will trigger the power system back on and cause a fault code. If you accidentally install with the power still active, clear the fault code via an OBD2 code reader and start the install procedure again with the vehicle’s
electrical system shut down completely.
For most cars, trucks and suv’s the connection for the Pedalbox is located near the gas pedal. During the installation use caution that the Pedalbox and cable are not interfering with the functionality of the gas pedal, or the steering column and are properly secured. Do not cut, shorten, or modify the wiring on the Pedalbox. Any modifications, or alterations will void the warranty of the Pedalbox.

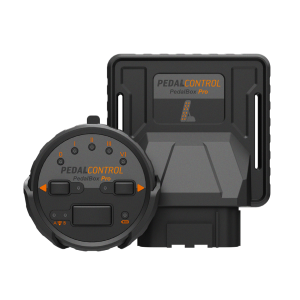

PedalControl-Pedalbox
